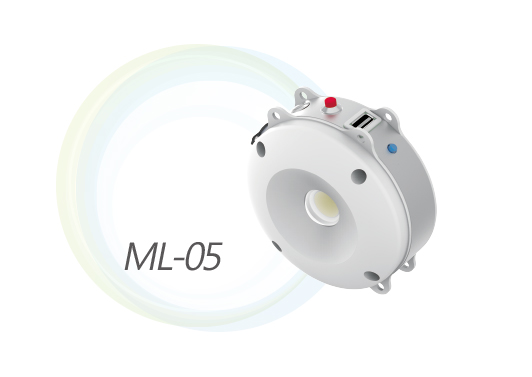

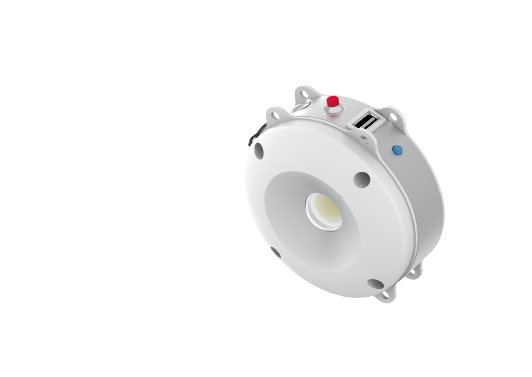

ML-05 LED COB Smile Light

Product Specifications
資料讀取中.......
Add Tracking
  • Features
    • LED mini round body design, lightweight and handy (total weight with
       battery only 400 g).
    • Dual function design for both lighting and charging, suitable for
       night activities, climbing, hiking, etc.
    • Built-in a 2.1A USB port for power bank usage, available for iPad /
       Tablet or cell phones recharging.
     a.Fade-in light intensity plus strobe warning mode, total 4 switch modes to
        strengthen personal safety.
     b.Multi-holes design for easy standing / mounting, or use any handy items
       ( such as S hooks or kettle buckles ) to hang on a backpack or IN / OUT
        of the tent, to enjoy brightness and safety.

    • Built-in high capacity lithium batteries (31200 mW).
    • On battery power, product can work in ambient temperature of  0°C~50°C.
    • When powered by DC charger, product can work in ambient temperature of
       -20°C~60°C.

    Four switch lighting modes (switching order)
    • The first mode for 1W.
    • The second mode for 4W.
    • The third mode for 8W.
    • The last mode for high power strobe lighting which can last up to 100 hrs.

    Press the red button to check battery balance by the following signs:
    RGB Flashing Charging
    RGB ON Fully charged (over 95%)
    Blue Light ON High level power balance (over 60%)
    Green Light ON Medium level power balance (between 25 and 60%)
    Red Light ON Low level power balance (below 25%)
    Red Light Flashing Power balance below 5%, recharge immediately

    Specifications
    Light Source LED COB Integrated
    Dimensions 107(L) x 103.5(W) x 42mm(H), also applicable as power bank.
    Installation Hand carry / Roping / Hanging / Standing.
    Input Voltage DC12.6V <1A, lithium battery charger.
    Battery Capacity Li-ion battery, 12V, 2.6Ah
    overcharge / over-discharge / short circuit protection board.
    Wattage 1W / 4W / 8W / Strobe mode ±10% ( 4 switch modes )
    Luminous Flux 880lm / DC12.6V
    Color Temperature 3000K±400K/  5500K±500K
    Bean Angle 90° Symmetric Lens
    CRI >80Ra
    Ambient On battery power, product can work in ambient temperature of 0°C~50°C.
    Powered by charger, product can work in ambient temperature of -20°C~60°C.
    Material Anodized Aluminum & Stainless Steel & Nylon
    Weight 0.4 Kg

    Instruction Manual

     1. Before the first time uses, please fully charged at least for 4 hrs. to maximize
           the capacity of battery.
      2. Press power button the first time to turn 1W mode on, lighting can last for
           more than 32 hrs.
      3. Press the second time to switch to 4W mode, lighting can last at least 8 hrs.
      4. Press the third time to switch to 8W mode, lighting can last at least 4 hrs.
      5. Press the fourth time to switch to strobe mode, flash lighting can last for
          more than 100 hrs.
      6. Press the fifth time to turn POWER OFF.
      7. Please use specialized charger (12.6 V/1A) for lithium battery charging.
          First, remove the plug of charger hole, then insert charger onto power outlet
          for recharging. Note that the product is safe to use while charging.
      8. Power output is 5V/2.1A.
      9. Battery charging indicator:
           Red light on = Charging         Green light on = Fully charged
    10. When the battery voltage below 9.0V, the device will automatically shift to
           power protection mode and need to recharge.
    11. When the battery voltage over 12.8V, the device will also automatically put
           power protection mode into action to prevent over-charging damage.
